MPI
Multi Process Inspector
Developed in the UK and distributed worldwide, the Prey range of equipment is a continually developing and improving windows 11 based software interface combined with a quality hardware platform.
Based upon many years of experience in the electronics manufacturing sector, the Prey product range is designed to offer customers what they want and need, while keeping costs down and implementation simple.

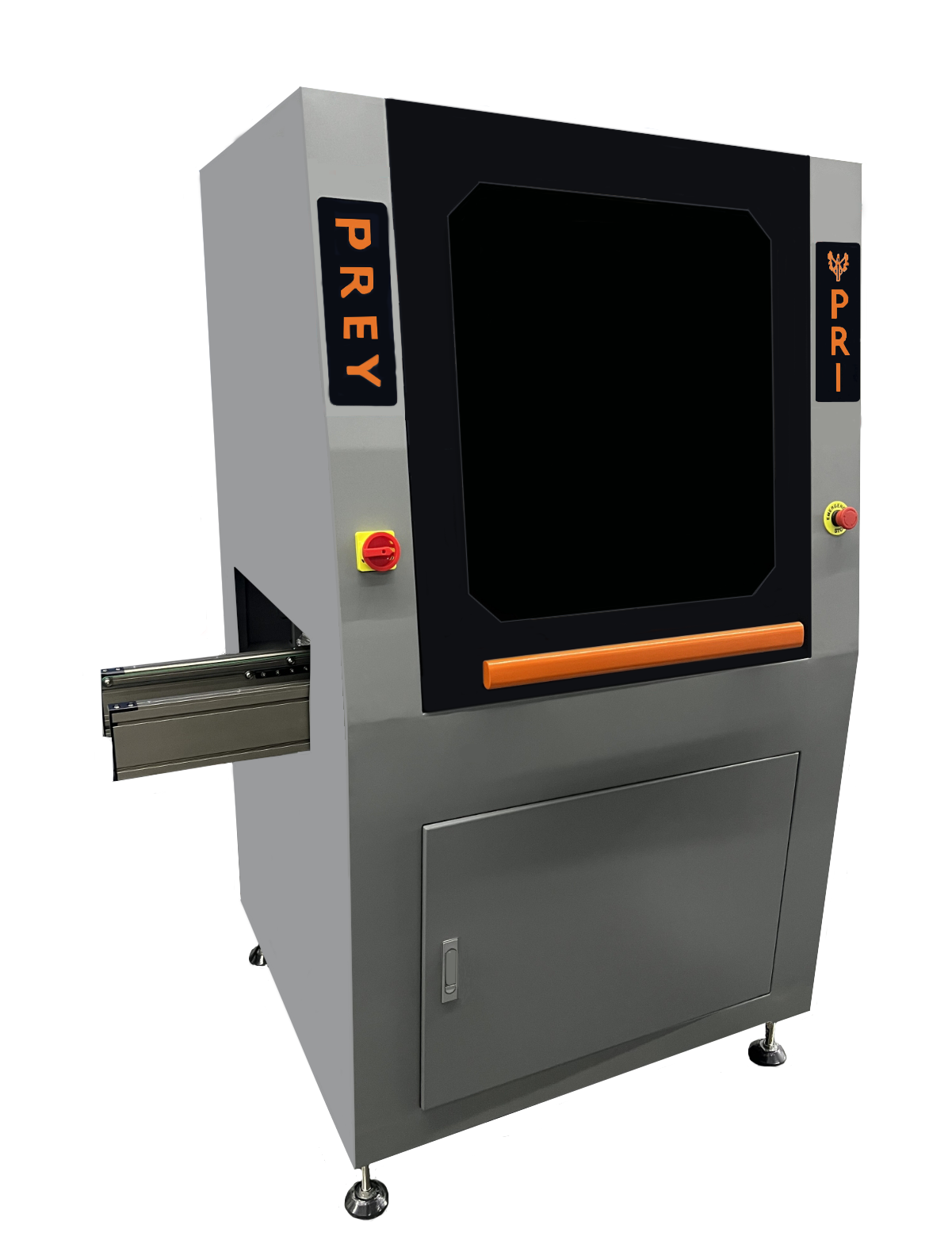

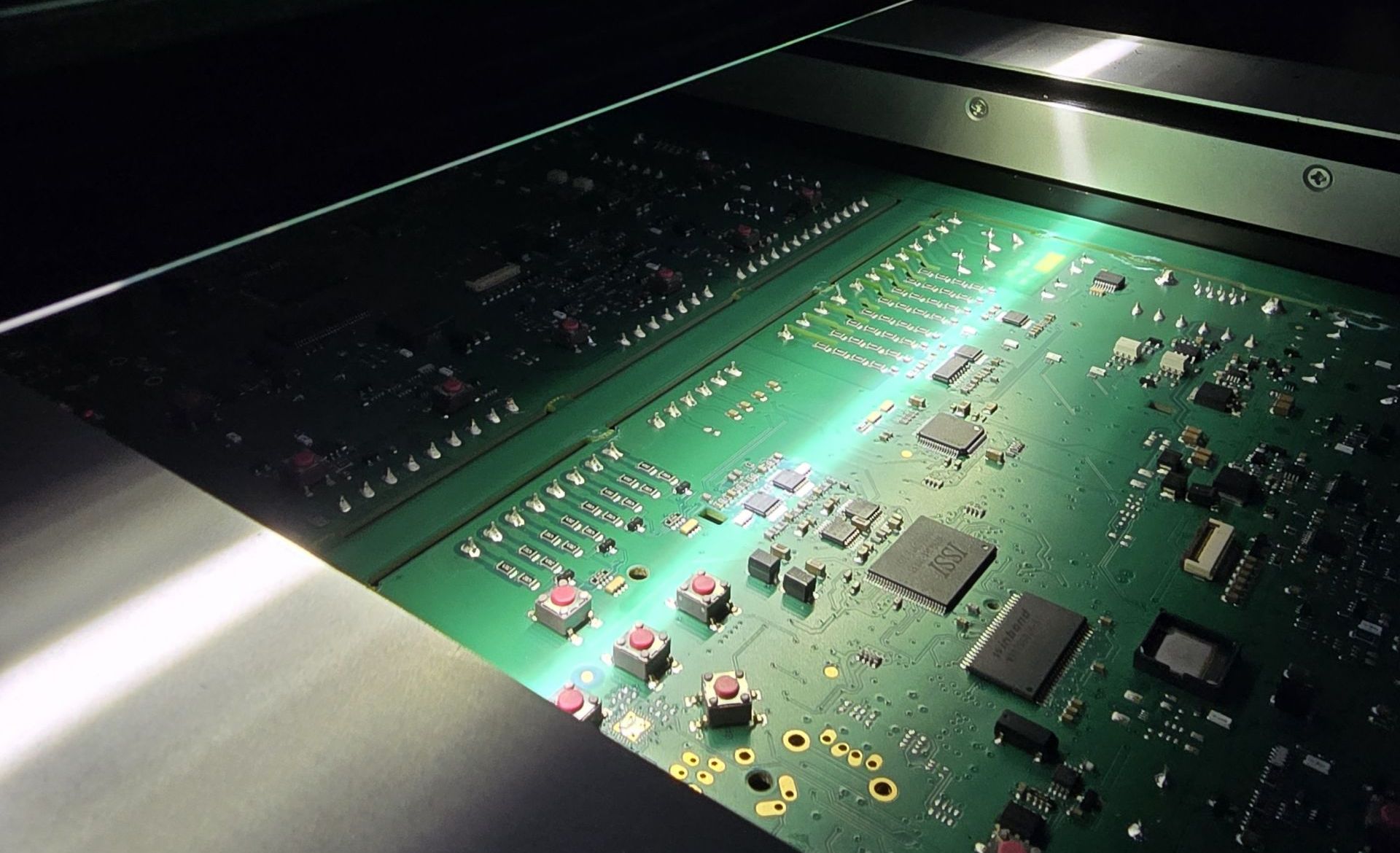

The Prey Multi Process Inspector, MPI, offers Pre-reflow Inspection and Routed Board inspection as standard via a high speed high resolution camera combined with dual high intensity white light for precise inspection and measurement. The MPI also has an optional UV Coating Inspection upgrade to check conformal coating PCB coverage. This is provided by an additional optics and lighting system within the same chassis, this can be provided from new or installed in the field at a later date.
The pre-reflow part of the system allows for the inspection of all SMT and THT components prior to the reflow process, either as a continuous inspection process on every PCB or as a first time verification after a production changeover. Catching any incorrectly loaded, misplaced, missing parts as well as many other defects. Before the first PCB even enters the reflow oven you will have the control to allow for these errors to be quickly rectified therefore avoiding unnecessary rework and possible wasted product.
Contact us for more information or to request a live demonstration at sales@prey.ltd or call us on +44 (0)1262 409944
More Information…
The Routed PCB Inspection allows for the PCBs to be inspected after the routing process, with precision accuracy, this makes sure that the final PCB will fit correctly into its final housing. The MPI detects and measures all tabs on a PCB, ensuring these are within the required tolerance as well as detecting and inspecting all other edges for any protrusions, that would prevent the PCB from being installed into the chassis. It is fair to say that a lot of these insertion processes are now becoming more automated, so having a correctly routed PCBA is even more critical.
The MPI is available in two PCB width options, as standard the optics provided can inspect up to 340mm at sub 20 microns, with a dual optics upgrade the width capabilities increase up to 510mm wide while maintaining sub 20 micron resolution. For PCB length, the MPI supports up to 500mm long as standard with an optional inlet conveyor to increase the maximum PCB length to up to 800mm for larger PCBs.
